Heatsink

Description

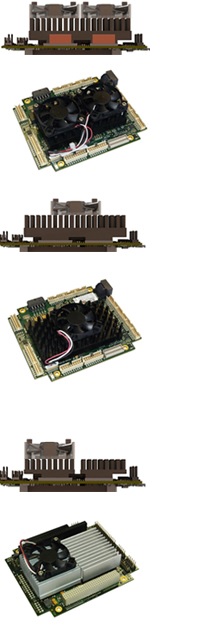

ADL Heatsink with fans (2 fan setup)

The thermal conduction path is direct attached – to transport the heat from CPU and CHIPSET as fast as s possible into the heatsink. Here the 2 top blow fans support to get rid of the heat. High power chips require 2 copper core enhancements inside of the heatsink. This keeps the thermal solution as small as possible.

The ADL heatsink and fan setup is a standalone thermal solution. To be used with: ADLQM67PC, ADLQM87PC



ADL Heatsink with fan (1 fan setup)

The thermal conduction path is direct attached – to transport the heat from CPU and CHIPSET as fast as s possible into the heatsink. Here the top blow fan support to get rid of the heat. Low power chips don’t require a 2nd fan or copper core enhancements inside of the heatsink. This keeps the thermal solution cheap and lightweight. The heatsink for big powerhouse Intel Core CPU features 2 fans and copper core enhancements.

The ADL heatsink and fan setup is a standalone thermal solution.
To be used with: ADLS15PC, ADLD25PC, ADLN2000PC, ADLE3800PC, ADLGS45PC


​
ADL 2 Heatsink set (1 fan setup)

The thermal conduction path is direct attached – to transport the heat from CPU and CHIPSET as fast as s possible into 2 sinle heatsink. Here the top blow fan support to get rid of the heat. Low power chips don’t require a 2nd fan or copper core enhancements inside of the heatsink. This keeps the thermal solution cheap and lightweight. The heatsink for big powerhouse Intel Core CPU features 2 fans and copper core enhancements.

The ADL heatsink set (with fan) is a standalone thermal solution.
To be used with: ADL855PC, ADL945PC
