Custom Embedded PC Applications

  • Industrial IoT (IIoT) network and cloud computing
  • Cyber security edge devices for networks, ICS and SCADA threat security
  • Secure networking (routing, traffic monitoring and gateways)
  • Intelligent machinery and equipment controllers
  • Unmanned or autonomous vehicle mission / payload computing
  • Wind turbine datalogging and collision avoidance

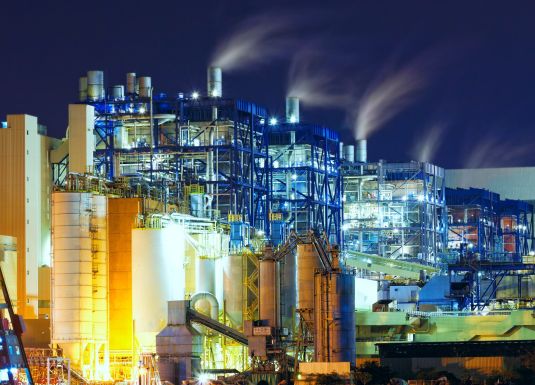

  • Oil and Gas

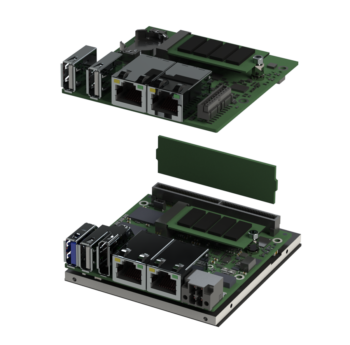

What’s inside

The heart of many compact system designs is Intel® Atom® E3800 or E3900-based SBCs as small as 75mm x 75mm. These are standalone CPU boards which make possible compact systems as small as 3.4” x 3.7” x 1.3” but also offer expansion possibilities that maintain a small footprint or low profile depending on the application use. The expansion connector features a number of interfaces including PCIeX1, USB 2.0/3.0, SATA, SMBus and DisplayPort.

Customization

ADL offers a range of COTS peripheral modules that can easily be integrated for added I/O functions like CAN, Ethernet, GPIO, Serial COM, storage and much more. Customers can also define custom peripheral boards for special I/O or power supply requirements as well as the custom enclosures necessary for complete solutions.

Customer Success Stories

Security Device for IIoT

Developed for a large multi-national corporation headquartered in Europe which specializes in trusted security software and services. ADL developed a compact Intel Atom-based embedded PC (EPC) to allow the customer expansion into industrial IoT applications.

CUSTOMER BENEFITS

  • Custom chassis colors (green, white, black)…ideal for deploying for different applications with different software features
  • BIOS support for custom M.2 cryto storage device
  • Rugged construction
  • Wide temperature operation

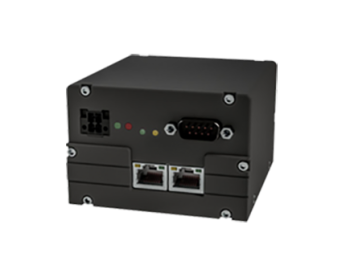

Cyberthreat Security Edge Device

Designed for retrofit into existing power sub-station infrastructure which is largely exposed to the elements, ADL designed a compact edge device with a host of critical features including rugged design, wide temperature and voltage and custom I/O for easy field deployment.

CUSTOMER BENEFITS

  • Compact Size
  • Wide Operating Temperature (-40C to 85°C)
  • Long-term Availability of 15 years
  • Custom Mezzanine to Address GPIO, Wide Input Voltage, LED and Configuration Switch Requirements

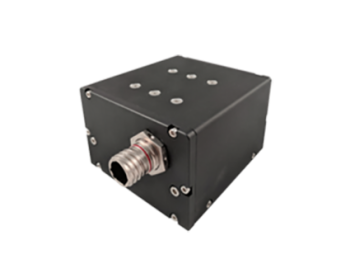

Compact, Military Avionics Edge Device

Derived from a previous custom design, this compact edge device features a MILCOTS ¼ brick power supply for voltage compatibility with available military avionics power. The customer was able to leverage their original cybersecurity application software in a new environment.

CUSTOMER BENEFITS

  • Compact Size
  • Customized for MILCOTS power supply
  • Wide Operating Temperature (-40C to 85°C)
  • Long-term Availability of 15 years
