Features
- 4x Gigabit LAN RJ45 Ports (with status LED)
- Intel 82574L LAN Controller
- 9 KB Jumbo Frame Support
- Temperature Range –40C to 85C
- Compatible with 2x 40 Pin PICe Expansion connector ADLGS45HDS, ADLQM67HDS, ADLQM87HD 3.5"-SBC
- Sice = 73mm x 95mm
- Bus powered (no additional power input required)
- 4x mounting holes for M3
Description

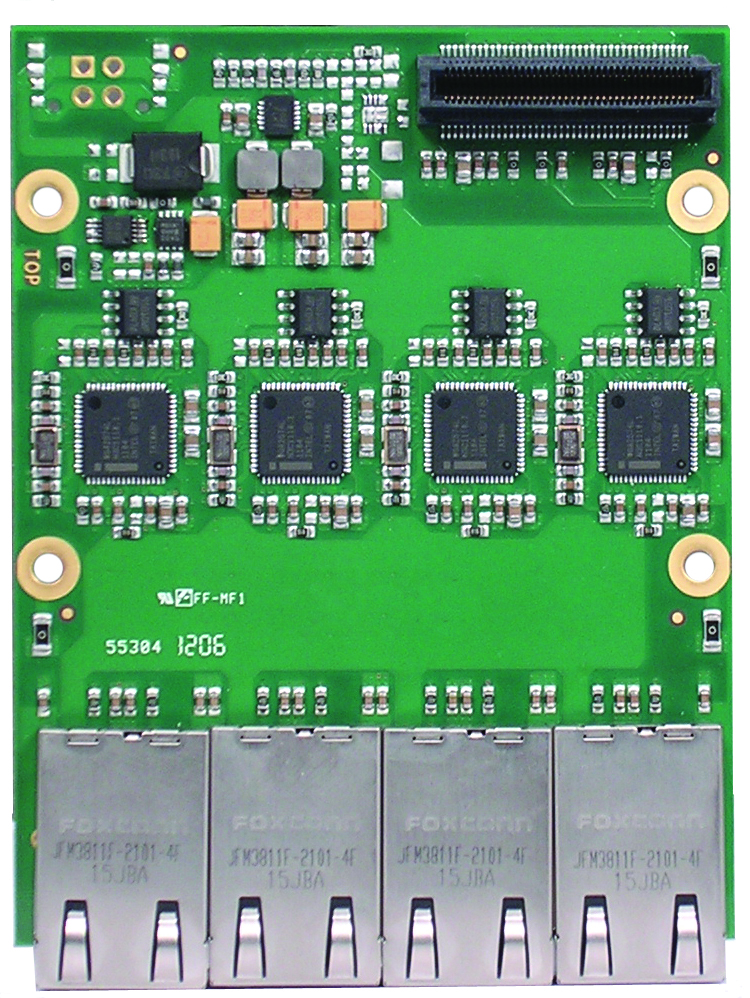

The ADLLAN35-41000e is based on 4 independent INTEL LAN Controller Typ 82574L.
Each LAN Controller uses a own PCIe x1 Link.
All 4 Ports can opperate at Gigabit speed. Each LAN port speed is backwards compatible to 10/100 Mbit.
The ADLLAN35-41000e is designed to expand ADL 3.5"-SBC with 4 additoinal Ethernet Ports.
PCIe Flex-Cable (4x1) to operate with ADL 3.5" Express SBC.
Comptibale 3.5-SBC: ADLGS45HDS, ADLQM67HDS, ADLQM87HD
Applications: Mobile Server / Remote Networking, Rugged, Extended Temp., Embedded, Ethernet Surveillance, Industrial Monitoring, Network Routing.
Ordering Information
| Item Codes | Part# | Description |
|---|---|---|
| BASE | ||
| ADLLAN35-41000E | 41015001 | 4 Port PCIE 10/100/1000 LAN Card for 3,5" CPU Boards. Requires: one 43015004 PCIE-FLEXCABLE4X1 |
| Cabels & Accessoires | ||
| PCIE-FLEXCABLE4X1 | 43015004 | 4X1 FLEX CABLE (FOR 41015001 ADLLAN4-1000 LAN CARD) |
