Features
| CPU: | Intel® Atom™ E3800 Processor (Bay Trail) |
| CPU Choice: | Quad Core E3845, Dual Core E3827, Single Core E3815 |
| Chipset: | Intel® SoC |
| RAM: | Up to 4GB DDR3L 1333MHz soldered |
| Frontpanal-Connectors | |
| LAN: | 2x GbLAN Intel i210 |
| Graphic: | DP 1920x1080 @ 60Hz 24bpp; Supports DVI/HDMI |
| USB: | USB 1x 2.0, 1x 3.0 |
| COM: | No external COM |
| PSU Input: | PSU onboard wide range DC input |
| Internal-Connectors (SBC onboard) | |
| LAN: | No additional LAN |
| Graphic: | No additional Graphic |
| USB: | No additional USB |
| Storage: | No additional SATA-Connector |
| Storage: | 1x SATA Storage Expansion: M.2 Key-B 2242 |
| Serial COM: | No additional COM |
| Audio: | 1x HD Audio (DP/HDMI) |
| I/O Expansion: | No additional I/O |
| PCIe Expansion: | No additional PCIe |
| GPIO: | No additional GPIO |
| TPM: | no additional TPM |
| Temp Std.: | -20° to +70°C |
| Temp Ext.: | -40° to +85°C (option upon request) |
| PSU Input: | Single Voltage, wide range 20-30VDC (24VDC Nominal) Optional 7-36VDC |
| PSU Features: | No additional PSU Features |
| Dimension: | 75mm x 75mm (2.9" x 2.9") |
| Weight: | 59gr |
Description

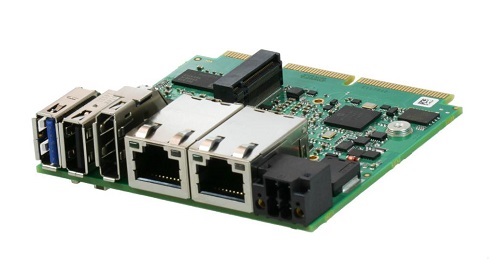

Measuring just 75mm x 75mm, the ADLE3800SEC is an embedded SBC specially optimized for Size, Weight, and Power (SWAP) applications. Based on the E3800 series Intel Atom™ SoC, this tiny board delivers maximum performance in the smallest possible size. It features a quad-core processor with up to 2MB onboard cache, and an integrated Intel HD Graphics engine with support for DirectX 11, Open GL 4.0, and full HD video playback.
About Edge-Connect Architecture:
Via the backside board-edge connector, additional I/O can easily be made accessible using standard and customer-specific breakout boards. Provides easy expansion and helps reduce cabling, integration time and system size all while increasing quality and overall MTBF. Connecting to sensors, cameras and storage is easy with a full range of onboard I/O: 2x Gigabit LAN, 1x USB 3.0, 1x USB 2.0, 2x PCie, and SATA. The Intel HD Graphics engine supports video output in either HDMI or Display Port format. An onboard M.2 socket allows users to install the fastest Solid State storage solutions on the market. Extended Temperature Ratings and hard-mounted Edge-Connect design make the ADLE3800SEC ideal for rugged embedded applications.
Applications:
UAV and UUV Unmanned Systems, Industrial Control Systems, Government and Defense, Video Surveillance, Small Scale Robotics, Remote Datalogging, Man-Wearable Computing
Please contact your sales representative for more information
sales@adl-europe.com
Ordering Information
| Item Codes | Part# | Description |
|---|---|---|
| CPU-Boards | ||
| ADLE3800SEC-E3845-4 | 41515012 | Intel E3845 Atom Processor; Quad Core, 4x 1.91 GHz, 2MB Cache, 9W TDP, 4GB RAM soldered |
| ADLE3800SEC-E3827-4 | 41515011 | Intel E3827 Atom Processor; Dual Core, 2x 1.75GHz, 1MB Cache, 8W TDP, 4GB RAM soldered |
| ADLE3800SEC-E3815-2 | 41515010 | Intel E3815 Atom Processor; Single Core, 1x 1.46GHz, 0,5MB Cache, 2,5W TDP, 2GB RAM soldered |
| Thermal solutions | ||
| ADLE3800SEC-Spreader | 48599023-SET | Low-Profile Heat Spreader |
| Options | ||
| ADL-ET | 290000 | Extended Temperature Screening (–40C to +85C) |
| UNDERFILL | 807707 | BGA underfill req’d for <1nm BGA solderballs w/ Ext Temp |
| COATING | 807706 | Conformal Coating |
| UNDERFILL/BONDING/COATING | 807709 | Underfilling, Bonding, and Conformal Coating |
